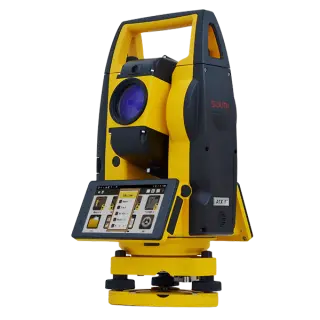

SOUTH A1 1", A1 2", A1X 1", A1X 2"
SOUTH A1 1", A1 2", A1X 1", A1X 2" — Elektron taxeometrlər. Topoqraf AZ MMC SOUTH-un Azərbaycanda rəsmi distribyutorudur: orijinal avadanlıq, rəsmi zəmanət, kalibrovka və texniki servis. Qiymət və çatdırılma müddəti üçün sorğu göndərin.
- Orijinal avadanlıq və rəsmi zəmanət
- Quraşdırma, təlim və texniki dəstək
- Kalibrovka və texniki servis
Xüsusiyyətlər
Texniki göstəricilər
| Model | -- | A1 1", A1 2", A1X 1", A1X 2" |
|---|---|---|
| LASER PLUMMET - AutoHI | Type | Class II red laser |
| Measuring Range | A1 1", A1 2": -- A1X 1", A1X 2": 0.6-2.0m | |
| Minimum Reading | A1 1", A1 2": -- A1X 1", A1X 2": 1mm | |
| Distance Accuracy | A1 1", A1 2": -- A1X 1", A1X 2": 3mm | |
| Deviation | A1 1", A1 2": -- A1X 1", A1X 2": 0.4mm @ 1.5m height | |
| Spot Diameter | A1 1", A1 2": -- A1X 1", A1X 2": 1.5mm @ 1.5m height | |
| Distance Measurement (Reflector) | Range | Single: 5000m Triple: 1000m Sheet: 1000m |
| Accuracy | A1 1": ±(1+1×10-6·D)mm A1 2": ±(2+2×10-6·D)mm A1X 1": ±(1+1×10-6·D)mm A1X 2": ±(2+2×10-6·D)mm | |
| Measure Time | Fine: 0.3s,Tracking: 0.2s,Normal: 0.2s | |
| Distance Measurement (Reflectorless) | Range (Kodak Standard Gray, 90% Diffuse Reflectance)* | 1000m |
| Accuracy | 0-300m 3+2 300-600m 5+2 >600m 10+2 | |
| Measure Time | Fine: 0.3s,Tracking: 0.2s,Normal: 0.2s | |
| Angle Measurement | Detection Method | Absolute Encoding |
| Diameter of Encoding Disk | 79mm | |
| Min. Reading | A1 1": 0.1" A1 2": 1" A1X 1": 0.1" A1X 2": 1" | |
| Accuracy | A1 1", A1 2": 1" /2" A1X 1", A1X 2": 1" /2" | |
| Telescope | Image | Erect |
| Tube Length | 154mm | |
| Effective Aperture | Effective: 45mm DTM: 50mm | |
| Magnification | 30X | |
| Field of View | 1°30' | |
| Resolution | 3" | |
| Min. Focusing Range | 1.5m | |
| Guide Light | Type | A1 1", A1 2": -- A1X 1", A1X 2": Red+yellow flashing LEDs |
| Working Range | A1 1", A1 2": -- A1X 1", A1X 2": 150m | |
| Comprehensive parameter | Sensor | Dual-axis Liquid-Electric Sensor (Range: ±6', Accuracy: 1") |
| Atmospheric Correction | T-P Sensor Auto Correction | |
| Prsim Constant | Auto Correction | |
| Trigger | Under Battery House | |
| IP Standard | IP55 | |
| Vial | Plate Vial | 30"/2mm |
| Circular Vial | 8'/2mm | |
| Plummet | A1 1", A1 2": Laser Plummet (Optical Optional) A1X 1", A1X 2": -- | |
| Data Transfer | RS-232C, USB, BLUETOOTH, Flash Disk | |
| Display Unit | Type | LCD, Graphic |
| Size | 5.0 Inch | |
| Graphic Display | Max: 99999999.999 Min: 0.1mm (1") Max: 99999999.999 Min:1mm (2") | |
| Battery | Power Supply | Lithium Battery 5000mAh |
| Voltage | 7.4V | |
| Working Hours | 10 Hours | |
| Dimention And Weight | Dimention | 206x200x353mm |
| Weight | 6kg | |
| Storage | ROM | 32GB |
| RAM | 3GB | |
| Function | GPS | Available |
| Voice Recording | Available | |
| CPU | mt6735 | |
| Data And Network | Data Transfer | BLUETOOTH, Wifi, Wifi Hotspot |
| 4G | Available | |
| 3G/2G | Available | |
| System Version | ANDROID 9 |
