Rəsmi distribyutor Sifarişlə Elektron taxeometrlər

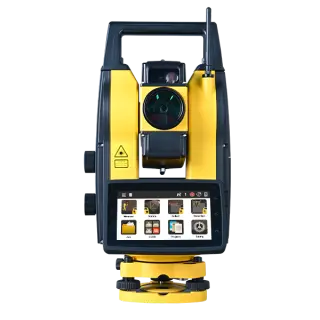

SOUTH NS10
SOUTH NS10 — Elektron taxeometrlər. Topoqraf AZ MMC SOUTH-un Azərbaycanda rəsmi distribyutorudur: orijinal avadanlıq, rəsmi zəmanət, kalibrovka və texniki servis. Qiymət və çatdırılma müddəti üçün sorğu göndərin.
- Orijinal avadanlıq və rəsmi zəmanət
- Quraşdırma, təlim və texniki dəstək
- Kalibrovka və texniki servis

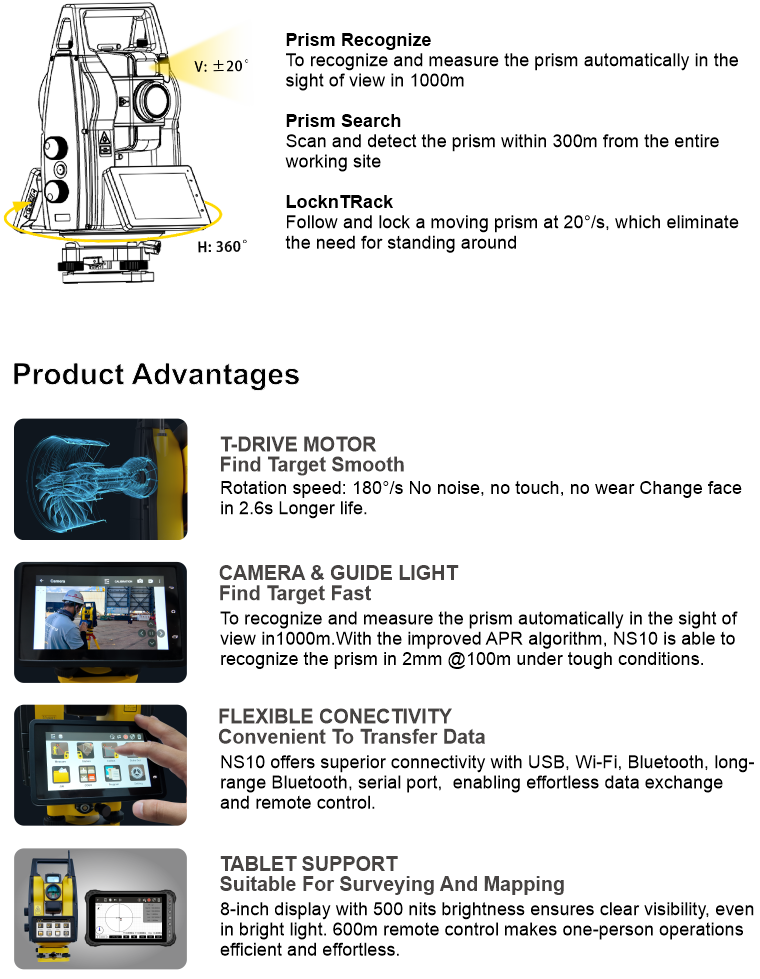

Xüsusiyyətlər
Texniki göstəricilər
| Angle Measurement | Accuracy | 0.5″-1″ |
|---|---|---|
| Reading System | Absolute, four-quadrant | |
| Display Resolution | 0.1″ | |
| Angle Units | DMS 360°/GON 400/MILL 6.400 | |
| Telescope | Magnification/ Field of view | 30x/1°30′ |
| Tube Length | 164.5mm | |
| Minimum focus distance | 1.5m | |
| Objective aperture | 45 mm | |
| Laser pointer | Red light, coaxial | |
| Tilt Sensor | Type | Dual axis, liquid-electric sensor |
| Compensation range/ accuracy | ±6'/1″ | |
| Distance Measurement Range | Standard prism mode | 6000m |
| Reflectorless | 1000m | |
| Distance Measurement Accuracy | Standard prism mode | 1 mm+1 ppm |
| Reflectorless | 3mm + 2ppm | |
| Measurement Time | Standard prism mode (Tracking/Fine) | ＜0.3 /0.7 sec |
| Reflectorless | Typically 0.8 sec(>500 m, >5 sec) | |
| Distance Measurement | Distance Unit | m/US ft/INT ft |
| Display Resolution | 0.0001 m/0.001 m; 0.001 ft/0.01 ft | |
| Motorization | Technology | Tdrive |
| Max rotation speed | 180°/sec | |
| APR-Target Aiming Range | 1.5-1000m | |
| APR-Measurement Time | ＜10 sec | |
| PS-Target Aiming Range | 1.5-300m | |
| PS-Angle | H: 360°-V: ±20° | |
| AIM accuracy | ±1 mm @ 100 m | |
| Laser Plummet | Laser type | 635nm semiconductor laser |
| Accuracy | 1mm/1.5 m | |
| Spot | 士1.8mm/1.5 m | |
| Level Vial Sensitivity | Circular level | 8′/2mm |
| Environmental Conditions | Operating Temperature | -20℃ to +50℃(-4℉ to 122℉) |
| Storage Temperature | -20℃ to +60℃(-4℉ to 140℉) | |
| Waterproof/dustproof | IP65/IP66 | |
| Humidity | 95% non-condensing | |
| Physical Specification | Dimensions | 430 x 255 x 235 mm |
| Weight Including Battery And Tribrach | 9.3 kg | |
| Power | Cpu | MSM8953 |
| Display | Two sides, 6" color LCD 720x1280 pixel touch screen | |
| OS | Android 9 | |
| Memory | RAM:3GB, ROM:32GB | |
| Interface | RS232 Micro USB Bluetooth long-range | |
| Camera | √ | |
| Guide Light | √ | |
| Sensor | Temperature/Pressure | |
| Network | 4G | |
| Onboard Field Application Programs | Servo TS |
