Rəsmi distribyutor Sifarişlə Yerüstü lazer skanerləri

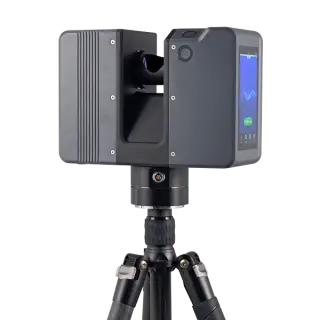

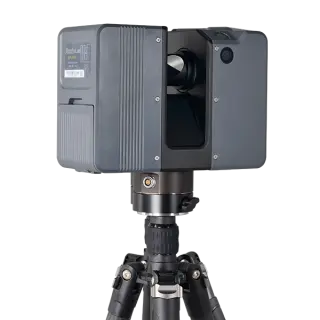

SOUTH SPL-1500/SPL-620/SPL-370/SPL-180
SOUTH SPL-1500/SPL-620/SPL-370/SPL-180 — Yerüstü lazer skanerləri. Topoqraf AZ MMC SOUTH-un Azərbaycanda rəsmi distribyutorudur: orijinal avadanlıq, rəsmi zəmanət, kalibrovka və texniki servis. Qiymət və çatdırılma müddəti üçün sorğu göndərin.
- Orijinal avadanlıq və rəsmi zəmanət
- Quraşdırma, təlim və texniki dəstək
- Kalibrovka və texniki servis

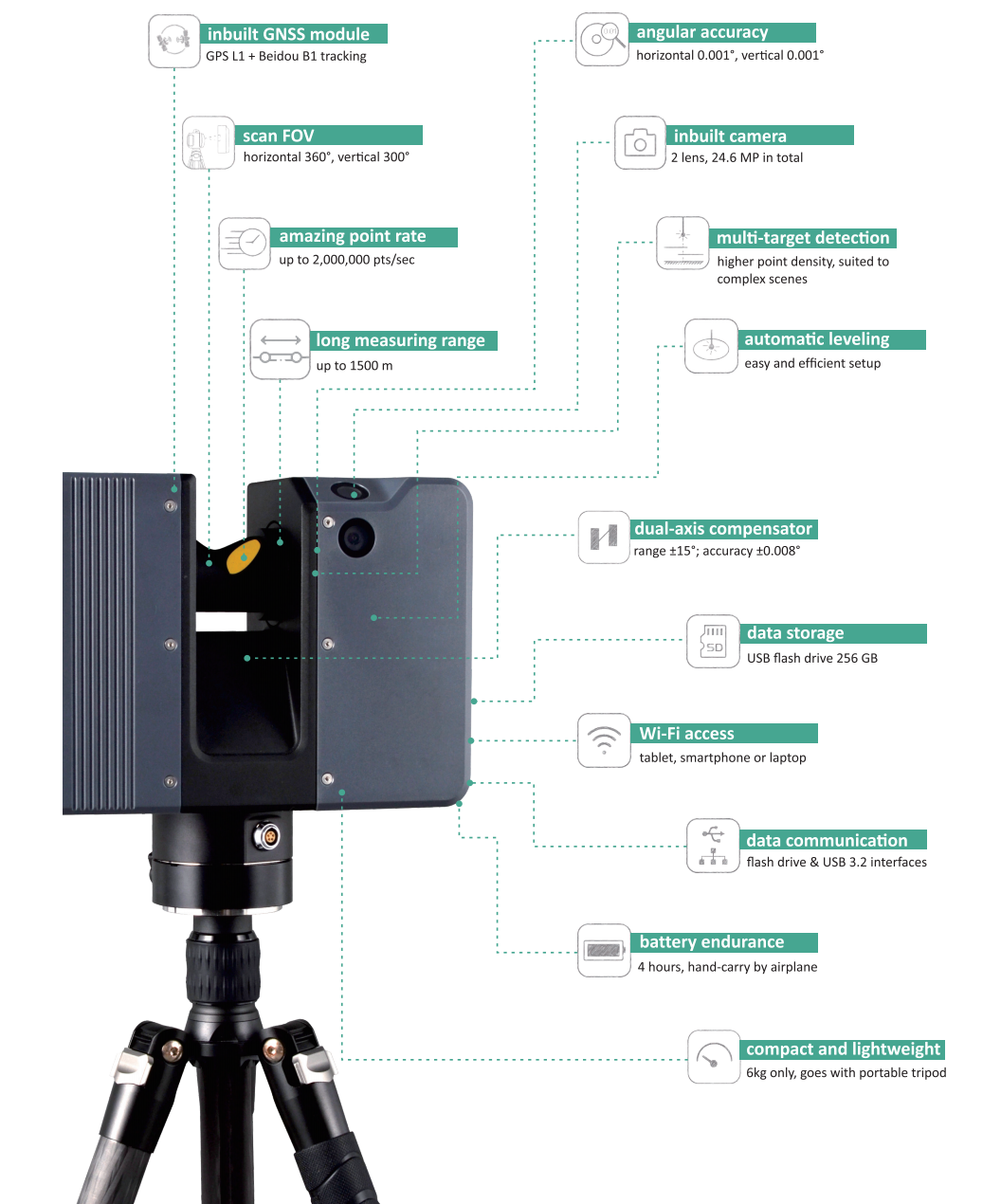

Xüsusiyyətlər
Texniki göstəricilər
| GENERAL | Model | SPL-1500 Pro/ SPL-620 Pro/ SPL-370 Pro/ SPL-180 |
|---|---|---|
| Series | AcuteLas | |
| Type | pulsed precise scan technology | |
| Scan Range | SPL-1500 Pro：0.6-1500m SPL-620 Pro：0.6-620m SPL-370 Pro：0.6-370m SPL-180：0.6-180m | |
| Real-time On-siteRegistration | Available/Available/Available/N/A | |
| TECHNICAL | Scan FOV | 360° (H) x 300° (V) |
| Scan Rate | 2,000,000 pts/sec max. | |
| Relative Accuracy* | SPL-1500 Pro：3mm@100 m SPL-620 Pro：5mm @100 m SPL-370 Pro：5mm @100 m SPL-180：5mm @100 m | |
| Angular Accuracy | 0.001° (H/V) | |
| Scan Speed | 80 Hz max. | |
| Step Size | 0.018° (20,480 pts 3D-pixel on 360° H./V.) | |
| Fieldwork Control | onboard touch screen or tablet remote via WLAN | |
| Fieldwork Reference | approx.16 sec (scan only, fastest); 41 sec (scan + image, fastest | |
| PHYSICAL | Dimension | 247x107x202 mm |
| Weight | 4.85 kg (without battery); 5.3 kg (with battery) | |
| Color | purple grey, solid uncoated | |
| LED Screen | 5-inch touch display, 720x1280 dpi | |
| Tripod Mount | Lightweight elevating camera tripod, 3-section, quick release | |
| Inverse Mounting | yes, downward up to 0.505 m by elevating tripod | |
| ONBOARD SENSORS | Laser Scanner Sensor | Class-1 eye-safe (in accordance withIEC 60825-1:2014) |
| Laser Wavelength | 1550 nm, invisible | |
| Laser Divergence Angle | 0.5 mrad | |
| Initial Beam Diameter | 3.6 mm | |
| Imaging Resolution | 24.6 MP (12.3 MP x2) in total for one capture | |
| Color Resolution | 8 directions, 45° each, 196.8 MP (12.3 MP x8x2) in total for one round | |
| Dual-axis Compensator | compensating range ±15° | |
| Height Sensor | To calculate the relative heights bynbuilt barometer and record in scan files | |
| Temperature Sensor | To record the internal temperature ofdevice realtime and keep it workingwithin the right range | |
| Compass | to record the northing direction while scanningTo record the northing direction whilescanning | |
| GNSS | Integrated GPS (L1) & Beidou (B1) | |
| Camera | Inbuilt 2 nos. Forward side and upward 45° | |
| Imaging Resolution | 24.6 MP (12.3 MP x2) in total for one capture | |
| Color Resolution | 8 directions, 45° each, 196.8 MP(12.3 MPx8x2) in total for one round | |
| Dual-axis Compensator | Compensating range ±15° | |
| ELECTRICAL | Power Supply | Detachable battery unit (inside batterycompartment) or external power supply |
| Power Consumption | 40 W while scanning, typical | |
| Battery Unit | rechargeable Li-ion battery, 28.8V, 3400mAh, 98Wh | |
| Battery Endurance | approx. 4 to 4.5 hours per unit | |
| ENVIRONMENTAL | Working Temperature | -20℃ to +60℃ |
| Storage Temperature | -35℃ to +70℃ | |
| Humidity Resistance | non-condensing | |
| Ingress Protection | IP64 rating | |
| INTERFACING | USB | 3.0, inside battery compartment |
| WLAN | 802.11 b/g/n on board | |
| External Power Supply | 18-24V DC, at bottom ring of the device | |
| DATA MANAGEMENT | Storage | USB 3.0 flash drive, 256 GB (upgradeable) |
| SOFTWARE | Remote control(Mobile) | AcuteLas Mobile |
| Remote control(Tablet) | AcuteLas Onsite | |
| Pre-process | AcuteLas Studio | |
| SDK Option | Negotiable, based on project demand |
