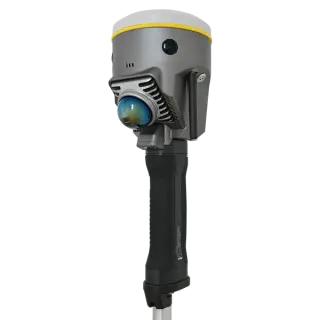

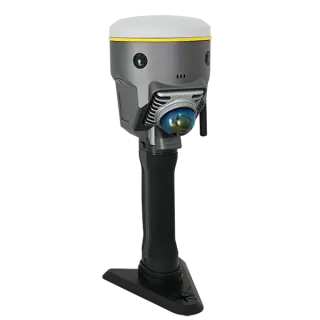

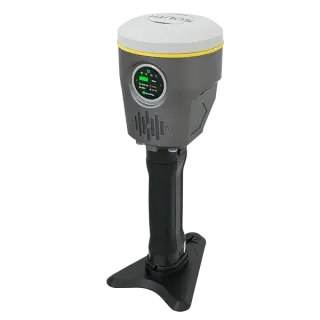

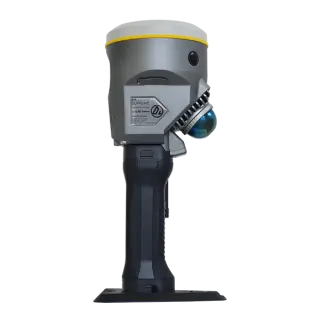

SOUTH DotLas Plus
SOUTH DotLas Plus — SLAM əl skanerləri. Topoqraf AZ MMC SOUTH-un Azərbaycanda rəsmi distribyutorudur: orijinal avadanlıq, rəsmi zəmanət, kalibrovka və texniki servis. Qiymət və çatdırılma müddəti üçün sorğu göndərin.
- Orijinal avadanlıq və rəsmi zəmanət
- Quraşdırma, təlim və texniki dəstək
- Kalibrovka və texniki servis
Texniki göstəricilər
| GENERAL | Model | DotLas Plus |
|---|---|---|
| Series | RobotSLAM | |
| Functionality | SLAM-based RTK, RTK-based SLAM, and merged applications all-round | |
| Type | GNSS RTK hybrid supreme | |
| Component | built in with GNSS mainboard, SLAM scanner, camera lenses, temperature sensor, IMU, smartwatch-like LED screen, etc. | |
| PHYSICAL | Dimension | 120x120x340 mm (LxWxH) |
| Net Weight | 1.4 kg (battery handgrip excluded); 1.8 kg (battery handgrip inclusive) | |
| Camera (for SLAM) | horizontal and forward, pixel size 2.0 μm, FOV 210°x120°, resolution 10 MP in total (5 MP x2), imaging effect best up to 20 MP | |
| Camera (for GNSS) | downward, resolution 2 MP x1, FOV 75° | |
| Laser Scanner | Livox Mid-360 built in, 3D mixed solid-state sensor, 40 channels | |
| Data Download | Type-C and Ethernet interfacing | |
| LEMO Interfacing | LAN1 (7-pin) and LAN2 (9-pin), for debugging and RS232 data transfer, etc. | |
| Temperature Sensor | built in, intelligent variable frequency temperature control, realtime monitors and regulates device temperature | |
| IMU Module | built in for GNSS, and supports tilt survey option, Linux OS | |
| LED Screen | smartwatch-like, round face, 1.39-inch, resolution 454x454 | |
| Wi-Fi Module | built in and serves as a Wi-Fi hotspot source, accessible to any smart device for configuration | |
| Network Telecom | SIM card slot built in, Nano SIM | |
| Radio Wireless | radio antenna interfacing SMA | |
| ELECTRICAL | Power Supply | battery handgrip unit, model: iGrip, 50 Wh, 3500 mAh |
| Endurance | ≥2 hours | |
| Power Consumption | 26 W | |
| Charging | charging time 2 hours, type-C recharge, max. current 3 A | |
| Input Voltage | nominal 14.4 V | |
| Power Output | charging 30 W max. current 5 A max. | |
| ENVIRONMENTAL | Working Temperature | -20 ~ 50 ℃ |
| Storage Temperature | -20 ~ 60 ℃ | |
| Operating Humidity | 80% non-condensing | |
| Ingress Protection | IP64 rating according to IEC 60529 | |
| COMMUNICATION | Screen Operation | touch operation, for mode setting and status display |
| Wi-Fi Datalink | device may access to Wi-Fi for transmit and receive differential corrections | |
| Web Interaction | Web UI management platform built in, accessible to device for relatime monitoring device status and device configuration via Wi-Fi and USB | |
| Audio Messaging | iVoice smart audio technology on board, for smart status broadcasting and voice instructions | |
| Voice Language | supports Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish as default | |
| Radio Datalink | RX radio module built in, working frequency 410-470 MHz, protocol Farlink, SOUTH, TrimTalk450S, ZHD, HUACE | |
| Bluetooth | BT4.2 (BR/EDR+BLE) standard automatic Bluetooth pairing between device and controller by touch (NFC module on board | |
| NFC Wireless | is needed for controller side) | |
| WLAN | 802.11b/g/n standard | |
| DATA MANAGEMENT | Data Transfer | USB, FTP, and HTTP |
| Data Storage | SSD 64 GB (for GNSS) and 512 GB (forSLAM) built in, extendable to 1 TB max. | |
| Data Format | Static: South STH, Rinex2, Rinex3.02, etc. Differential: RTCM3.0, RTCM3.2 input and output GPS output: NMEA0183, PJK plane coordinate, binary code Network module: VRS, FKP, MAC, N-Trip | |
| SOFTWARE | GNSS Fieldwork | SurvStar |
| Fieldwork Partner | smartphone recommended (instead of regular data logger) | |
| SLAM Fieldwork | SurvStar | |
| SLAM Pre-proces | RobotSLAM Engine |
