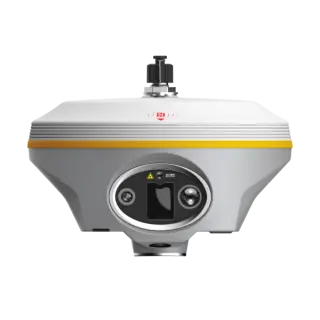

SOUTH INNO8 Pro
SOUTH INNO8 Pro — GNSS RTK sistemləri. Topoqraf AZ MMC SOUTH-un Azərbaycanda rəsmi distribyutorudur: orijinal avadanlıq, rəsmi zəmanət, kalibrovka və texniki servis. Qiymət və çatdırılma müddəti üçün sorğu göndərin.
- Orijinal avadanlıq və rəsmi zəmanət
- Quraşdırma, təlim və texniki dəstək
- Kalibrovka və texniki servis
Xüsusiyyətlər
Texniki göstəricilər
| GNSS Features | Channels | 1898 |
|---|---|---|
| GPS | L1C, L1C/A, L2C, L2P(Y), L5 | |
| GLONASS | G1, G2, G3 | |
| BDS | B1I, B2I, B3I, B1C, B2a, B2b | |
| GALILEO | E1, E5a, E5b, E6, AltBOC* | |
| SBAS | L1* | |
| IRNSS | L5* | |
| QZSS | L1, L2C, L5* | |
| MSS L-Band* | BDS PPP/ Galileo HAS | |
| Positioning Output Rate | 1Hz~20Hz | |
| Initialization Time | < 10s | |
| Initialization Reliability | >99.99% | |
| Positioning Precision | Code Differential Positioning | Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS |
| GNSS Static | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 3.5 mm + 0.5 ppm RMS | |
| Static (Long Observation) | Horizontal: 2.5 mm + 0.1 ppm RMS Vertical: 3 mm + 0.4 ppm RMS | |
| Rapid Static | Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS | |
| PPK | Horizontal: 3 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMS | |
| RTK(UHF) | Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS | |
| RTK(NTRIP) | Horizontal: 8 mm + 0.5 ppm RMS Vertical: 15 mm + 0.5 ppm RMS | |
| SBAS Positioning | Typically<5m 3DRMS | |
| RTK Initialization Time | 2~8s | |
| IMU Tilt Angle | 0°~ 120° | |
| Hardware performance | Dimension | 155mm(φ)×93.6mm(H) |
| Weight | 1280g (battery included) | |
| Material | Magnesium aluminum alloy shell | |
| Operating Temperature | -45℃~+75℃ | |
| Storage Temperature | -55℃~+85℃ | |
| Humidity | 100% Non-condensing | |
| Waterproof/ Dustproof | IP68 standard, fully protected against blowing dust | |
| Shock/Vibration | Withstand 2 meters pole drop onto the cement ground naturally | |
| Power Supply | 6-28V DC, overvoltage protection | |
| Battery | Inbuilt 7.4v 10,000mAh echargeable Lithium-ion battery | |
| Battery Life | 30h | |
| Communications | I/O Port | 5-PIN LEMO interface (external ower port + RS232) Type-C interface (Charge+OTG+Ethernet) UHF antenna interfaceSIM card slot (Micro SIM) |
| Internal UHF | 3W Radio receiver and transmitter | |
| Frequency Range | 410-470MHz | |
| Communication Protocol | Farlink, Trimtalk, SOUTH, HUACE, Hitarget | |
| Communication Range | Typically 8-10km with Farlink protocol (12-15km in optimal condition) | |
| Cellular Mobile Network | 4G | |
| Bluetooth | Bluetooth 5.0, 3.0/4.2 standard, Bluetooth 2.1 + EDR | |
| NFC Communication | Support | |
| Modem | 802.11 b/g/n standard | |
| Data Storage/Transmission | Storage | 64GB SSD internal storage Automatic cycling storage Support external USB storage (OTG) The customizable sample interval is up to 20Hz |
| Data Transmission | Plug and play mode of USB data transmission Supports FTP/HTTP data download | |
| Data Format | Static data format: STH, Rinex2.01, Rinex3.02 and etc. Differential data format: RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 GPS output data format: NMEA 0183, PJK plane coordinate, Binary code Network model support: VRS, FKP, MAC, fully support NTRIP protocol | |
| Sensors | IMU | calibration-free, up to 120°, refresh rate 400 Hz, pitch & roll accuracy 0.05 °,heading accuracy 0.15° |
| Camera | Video shooting camera: 8MP Laser aiding telephoto camera: 8MP AR stakeout camera: 2MP | |
| Laser | 3R green laser, 150m range (200m in optimal condition) 2cm within 10m, 4cm within 20m | |
| Electronic Bubble | Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time | |
| Thermometer | Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature | |
| User Interaction | Operating System | Linux |
| Buttons | Dual buttons | |
| Indicators | Satellites, data and power indicators | |
| Display | 1.39’ circular LED touchscreen,454*454 pixel | |
| Web Interaction | With access to Web UI via WiFi or USB connection, users can monitor the receiver status and change the configurations | |
| Voice Guidance | Chinese/English/Korean/Spanish/ Portuguese/Russian/Turkish/French/ Italian | |
| Secondary Development | Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition | |
| Cloud Service | The powerful cloud platform provides online services like remote management, firmware updates, online registers, etc. |
