SOUTH NET S10
SOUTH NET S10 — CORS stansiyaları. Topoqraf AZ MMC SOUTH-un Azərbaycanda rəsmi distribyutorudur: orijinal avadanlıq, rəsmi zəmanət, kalibrovka və texniki servis. Qiymət və çatdırılma müddəti üçün sorğu göndərin.
- Orijinal avadanlıq və rəsmi zəmanət
- Quraşdırma, təlim və texniki dəstək
- Kalibrovka və texniki servis
Xüsusiyyətlər
Texniki göstəricilər
| GNSS Signal | Channels | 1598, 336 (optional) |
|---|---|---|
| GPS | L1, L2, L5, L1C/A, L2E(L2P), L2C, L5 | |
| BDS | B1,B2,B3 | |
| GLONASS | L1, L2, L1C/A, L2P, L2C/A, L2P | |
| GALILEO | E1, E5A, E5B, B5AltBOC, E6 | |
| SBAS | L1, L5 | |
| NavIC(IRNSS) | Depends on the installing board | |
| Intelligent and dynamic high sensitivity positioning technology to adapt rough working environment and longer working range | ||
| Initialization time | <45 s (cold start) | |
| Reliability | >99.9% | |
| Accuracyc | Autonomous | H: 3 m, V: 5 m(1 sigma, PDOP< 3) |
| Differential GPS | H: 25cm+1ppm, V: 50+1 ppm | |
| Long observation static | H: 2.5mm+0.1ppm, V: 5mm+0.4ppm | |
| Static and fast static | H: 3mm+0.5ppm, V: 5mm+0.5ppm | |
| Realtime kinematic | H: 8mm+1ppm, V:15mm+1ppm | |
| Data Save/ Output | Internal memory | 64G(support 1TB), auto cycling save |
| Removable storage | Support external removable storage upto 1 T | |
| Position update rate | 0.05Hz,0.1Hz,0.2Hz,1Hz,2Hz,5Hz,10Hz,20Hz,50Hz (depends on installation option) | |
| Differential data output | RTCM2.x,RTCM3.x,CMR | |
| Navigation data output | ASCII: NMEA-0183 GSV,AVR,RMC,HDT,VGK,VHD,ROT,GGK,GGA,GSA,ZDA,VTG, PJT,PJK,BPQ,GLL,GRS,GBS,Binary | |
| Static data format | STH,Rinex2.x,Rinex3.x,Binex | |
| Data retrieval | Data download by HTTP, FTP, pen drive copy | |
| Concurrent data logging | 8 independent logging | |
| Communication | Ethernet | Supports TCP/IP data stream, ntrip server, client, caster, HTTP, FTP server and FTP push |
| Serial port | Support multi independent data streams,navigation data, observation data, differential correction data | |
| Bluetooth | Bluetooth 2.1+EDR, 2.4GHz | |
| WIFI | 2.4GHz, IEEE 802.11b/g/n, supports hotspot and client mode | |
| Radio | Selectable(1W/2W/3W) | |
| Phone network | GSM,GPRS,LTE,UMTS,HADPA,3G,4G | |
| Security | Authority level | 3 Level(Super administrator, Auditor, administrator) |
| System log | Log records up to 10000 for all the operations done with system | |
| Password authentication | Allows multi-characters combination for password and multi authentications | |
| Encryption algorithm | Advanced encryption algorithm, SM2+SM4 combination | |
| Digital certificate | Digital signature to authorize different level of configuring receiver | |
| System security | Inbuilt firewall, auto detect melicious attack. Dual system and configuration parameters backup | |
| Electric | External power supply | 9-36V DC input with over-voltage protection. 3 DC input ports |
| Internal battery | Inbuilt 10000mAh li-ion battery supports continous work more than 20 hours. Auto charge inbuilt battery when external DC power is supplied | |
| Power | 4W | |

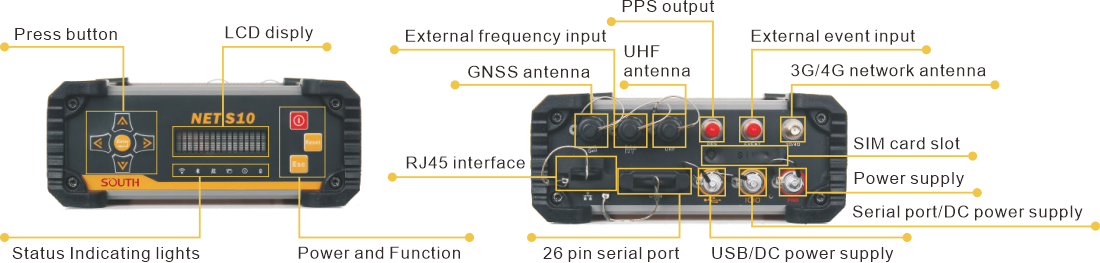

| Device Interface | Front panel indicating light: Bluetooth, differential correction, WIFI, data logging, power, battery status | |
| Rj45: 1 | ||
| Rs232: 2, support meteorology data, tilt sensor data and other sensor data | ||
| USB port: 2, USB host, USB device | ||
| External DC supply: 3 | ||
| PPS output interface: 1; Event maker input interface: 1 | ||
| External frequency scale port: 1 | ||
| GNSS antenna port: 1 | ||
| UHF antenna port: 1 | ||
| SIM card slot: 1 | ||
| GPRS antenna: 1 | ||
| TF card slot: 1 | ||
| Physical | Size | 216×178×72 mm |
| Weight | 2.25 Kg | |
| Shock and drop | Rugged alluminium shell, survive a 2 m dop, MIL-STD 810F | |
| Water/dust proof | IP68 | |
| Environmental | Working temperature | -40℃ to 75℃ |
| Storage temperature | -45℃ to 85℃ | |
| Non-condensing humidity | 100% |
