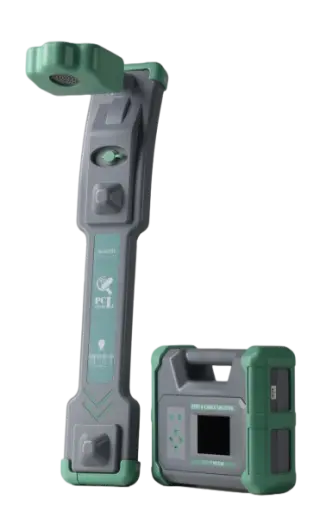

SOUTH PCL-30
SOUTH PCL-30 — Boru və kabel axtarıcıları. Topoqraf AZ MMC SOUTH-un Azərbaycanda rəsmi distribyutorudur: orijinal avadanlıq, rəsmi zəmanət, kalibrovka və texniki servis. Qiymət və çatdırılma müddəti üçün sorğu göndərin.
- Orijinal avadanlıq və rəsmi zəmanət
- Quraşdırma, təlim və texniki dəstək
- Kalibrovka və texniki servis

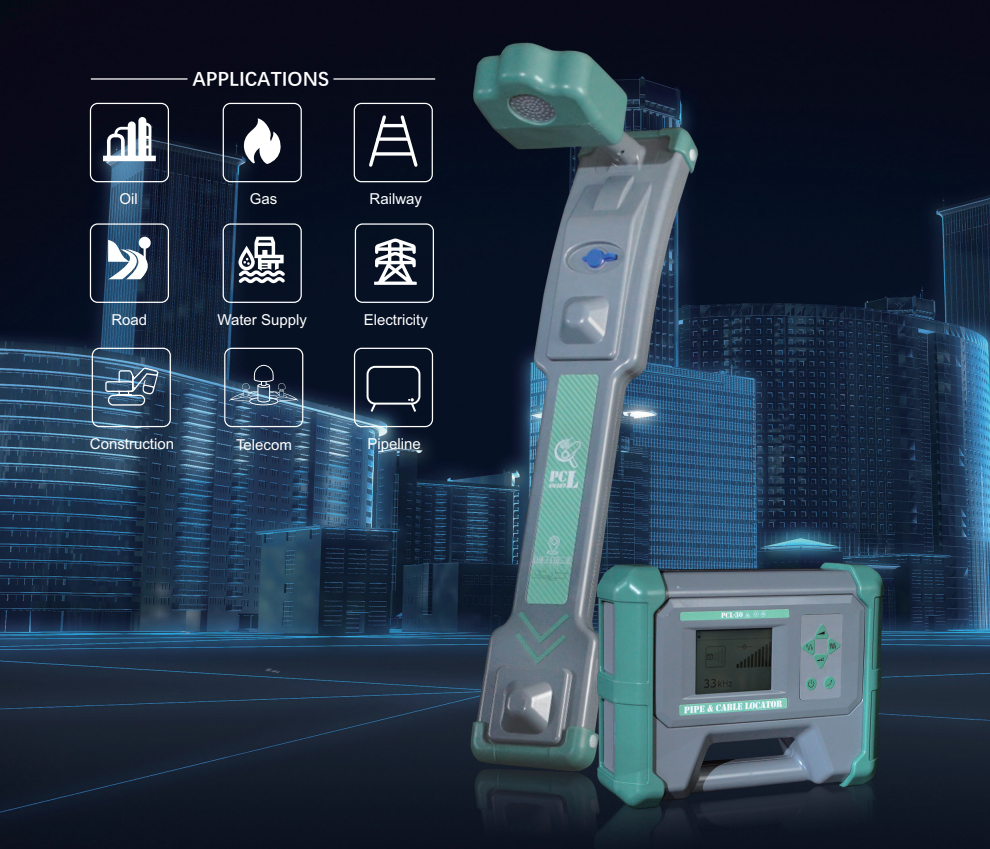

Xüsusiyyətlər
Texniki göstəricilər
| PCL-30 | Sensitivity | 6E-15 Tesla, 5μA @1m (33kHz) |
|---|---|---|
| Dynamic range | 140dB | |
| Depth accuracy | Depth D≤2m:±2.5%, 2m＜Depth＜8m: ±5% | |
| Position accuracy | ±5% * depth | |
| Screen display | Color LCD screen | |
| Pipeline track | Eliminate interfering frequencies | |
| Eliminate interfering frequencies | Support passive Detection Spectrum Analysis | |
| Depth sounding auxiliary sensor | Signal distortion reminder (optional) | |
| Active positioning filter bandwidth | ± 2Hz | |
| Maximum depth measurement | 30m | |
| Active positioning mode | Wide peak, narrow peak, valley value, historical curve, spectrum | |
| Transmitter has multiple signal output modes | Direct connection method, clamp method, induction method | |
| Gain control | Guided Mode：Automatic Manual mode：Use "+" or "-" to manually adjust the gain, and restore the center value(40% or 60% of the full scale) with one key Active positioning frequency：640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz | |
| Probe frequency | 512Hz, 8kHz and3 3kHz | |
| Fault find | Optional Accessories A-frame and compatible transmitter to remove insulation jackets from pipes and cables | |
| Fault location accuracy | 10cm (fault detection booster and A-frame: used to locate partial cable faults and pipeline insulation damage points) | |
| Passive positioning mode | 50/60Hz power frequency, 4-24kHz radio frequency Multiple pipelines can be displayed simultaneously 100Hz (or 120Hz) for detection of impressed current cathodic protection (CPS) pipelines (optional) | |
| Volume | 5 adjustable levels, allowing operators to clearly hear the alarm in noisy environments | |
| Synchronize depth and current readings | Simultaneously display pipeline depth and positioning signal current | |
| Detection measurement value | Store up to 1024 survey points in the locator and attach GPS data from internal GPS (if equipped) or external GNSS source via Bluetooth. Export data instantly or in batches via Bluetooth | |
| Dynamic overload protection | 40dB(Automatic) | |
| Battery | The receiver has a built-in lithium-ion battery pack (continuous operation for 12 hours, 7.4V, >3Ah); the transmitter has a built-in lithium-ion battery pack (continuous operation for 12 hours, 7.4V, >3Ah) | |
| Operating temperature | -25℃ to 60℃, <90%RH | |
| Storage temperature | -20℃ to 70℃ | |
| Shipping size | 700mm x 260mm × 330mm | |
| Quality certification | ISO 9001:2015 | |
| IP | IP65 |
