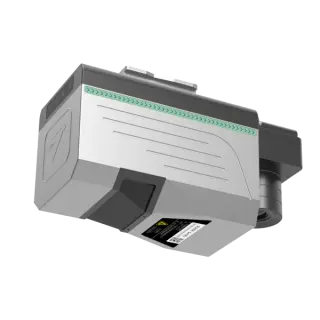

SOUTH SA130mini
SOUTH SA130mini — LIDAR & UAV. Topoqraf AZ LLC is the official SOUTH distributor in Azerbaijan: genuine equipment, official warranty, calibration and technical service. Request a quote for price and delivery time.
- Genuine equipment and official warranty
- Setup, training and technical support
- Calibration and technical service

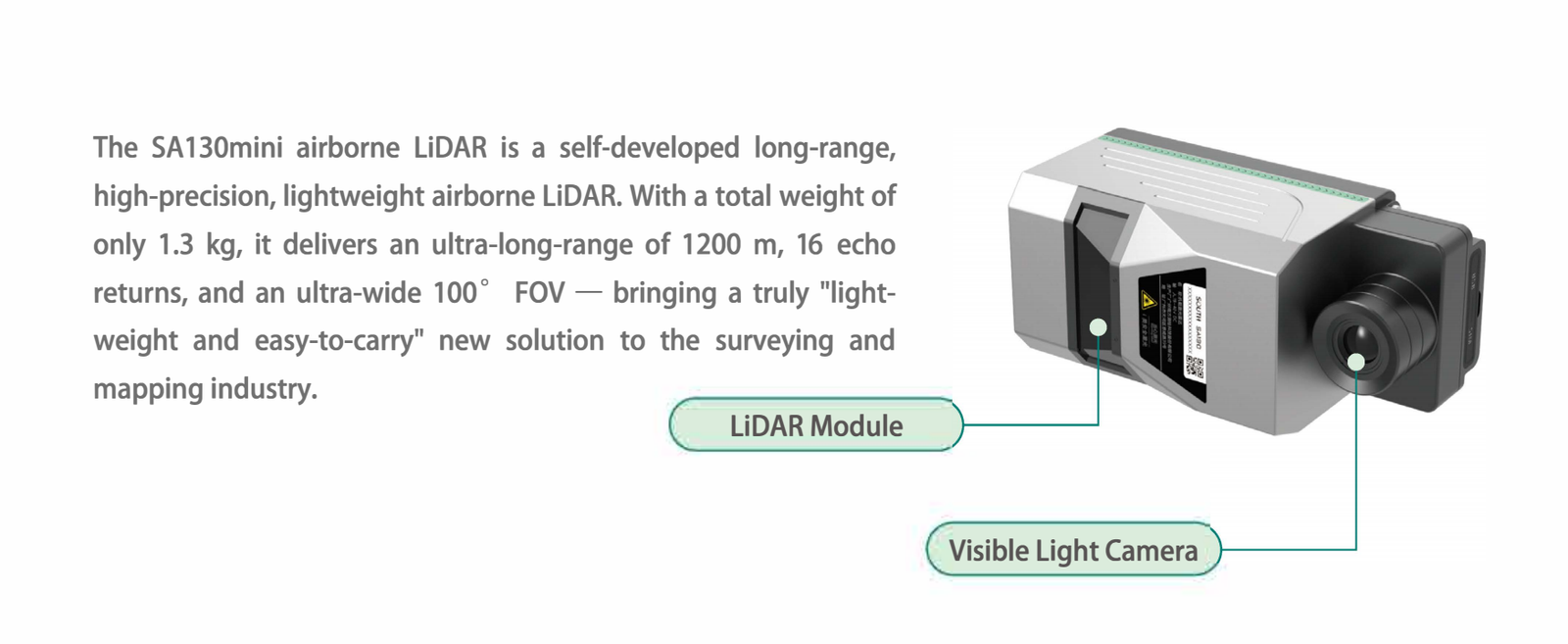

Features
Specifications
| System Performance | GNSS | BDS B1I, B3I,B1C*,B2a,B2b*GPS L1C/A, L2P(Y)/L2C, L5SBAS L1C/AQZSS L L1C/B, L2C, L5, L6* GLONASS G1, G2 Gallleo E1, E5a, E5b,E6* |
|---|---|---|
| Weight | 1.3kg | |
| System Accuracy | 5cm@300m | |
| Dimension | 180 X 116.5 X 87.2 mm (incl. quick-release interface) | |
| Ingress Protection | IP64 | |
| Power Consumption | 40 W | |
| Scanner Sensor | Laser Range | 1200 m |
| Ranging Accuracy | 15 mm/5 mm @150m | |
| Line Scan Rate | 255 beams/sec | |
| Scan Frequency | 2000 kHz max. | |
| Scan FOV | 100° downward | |
| Echo Returns | 16 returns | |
| Laser Class | Class1,(IEC 60825-1:2014), eye-safe | |
| POS | Refesh Rate | 500Hz |
| Angular Accuracy | Roll/Pitch: 0.006° ; Heading: 0.019° (Post-Processed) | |
| Positional Accuracy | H.:0.01m;V.:0.02m (Post-Processed) | |
| RGB Camera | Option | 2 Models |
| Resolution | 45 MP/26MP | |
| Focal Length | 18 mm/16 mm | |
| Sensor Size | 36 x 24 mm/23.5 x 15.6mm | |
| FOV | 90° /73° | |
| GSD | 4.9cm/4.7cm@200m | |
| whole machine | workingtemperature | -20°Cto-55°C |
