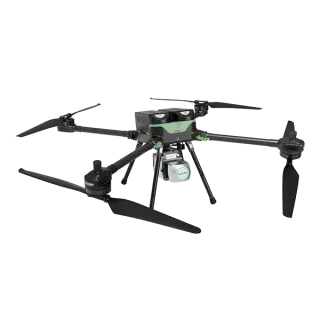

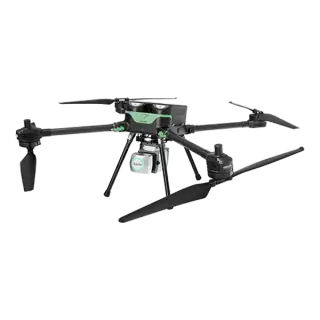

SOUTH SF1200
SOUTH SF1200 — LIDAR & UAV. Topoqraf AZ LLC is the official SOUTH distributor in Azerbaijan: genuine equipment, official warranty, calibration and technical service. Request a quote for price and delivery time.
- Genuine equipment and official warranty
- Setup, training and technical support
- Calibration and technical service

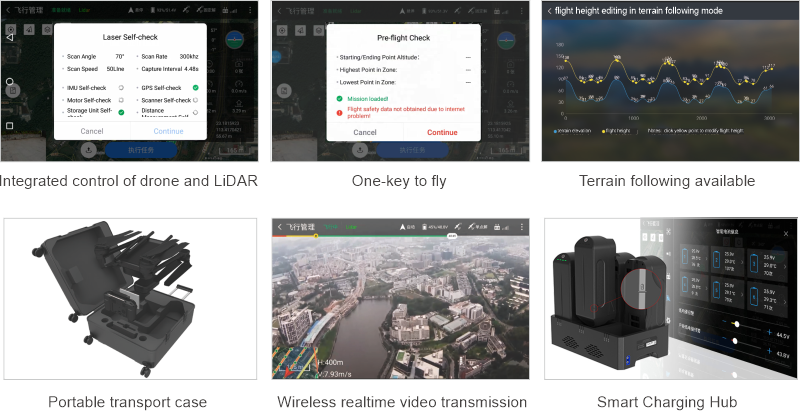

Features
Specifications
| SF1200 | Diagonal wheelbase | 1.15 m(±0.01 m) |
|---|---|---|
| Dimension | Packing size: 570*520*260 mm Unfold size: 920*920*440 mm | |
| Takeoff weight(w/o payload) | 12 kg | |
| Maximum payload | 4 kg | |
| Duration time | 60 min w/o payload; 50 min with 3 kg payload | |
| Max. climbing speed | 5 m/s | |
| Min. descending speed | 5 m/s | |
| Velocity | Max cruising 18 m/s | |
| Maximum ceiling | >4500 m | |
| Wind resistance | Beaufort scale 5 | |
| Radio datalink range | 10 km | |
| Positioning accuracy | H: ±1 cm+1 ppm V: ±2 cm+1 ppm | |
| Differential mode | RTK/PPK | |
| Working temperature | -20℃~+50℃ | |
| Payload type | RGB camera, 5-Lens camera, LiDAR | |
| Terrain following function | Available | |
| Obstacle avoidance | Forward 40 m, millimeter-wave radar detection |
