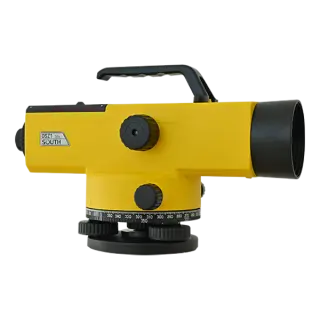

SOUTH DSZ1
SOUTH DSZ1 — Automatic Levels. Topoqraf AZ LLC is the official SOUTH distributor in Azerbaijan: genuine equipment, official warranty, calibration and technical service. Request a quote for price and delivery time.
- Genuine equipment and official warranty
- Setup, training and technical support
- Calibration and technical service

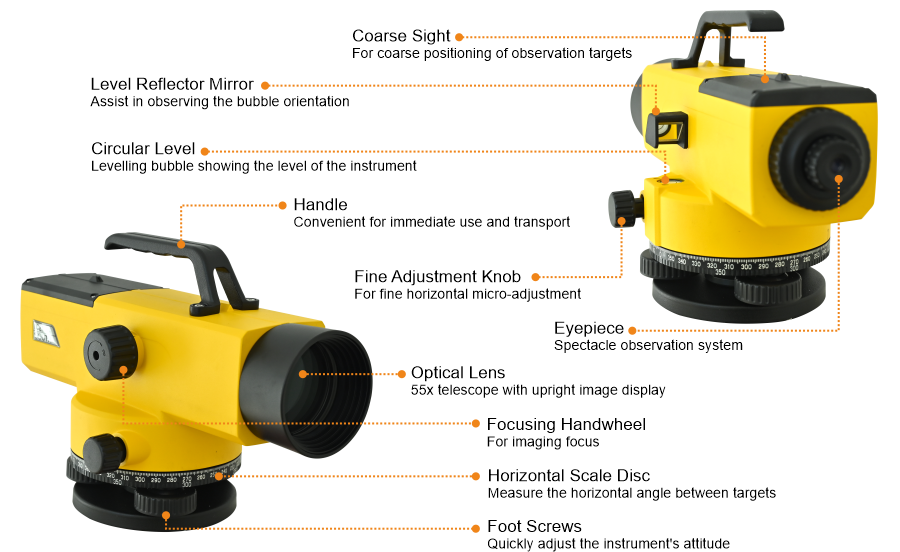

Features
Specifications
| Standard deviation of measurements per kilometre round trip | High-quality indium steel scale | 0.7mm |
|---|---|---|
| Ordinary Scale | 1.0mm | |
| Telescope Image | Erect | |
| Magnification | 55X | |
| Field of View | 1°30’ | |
| Min. Focus Distance | 1.2m | |
| Multiplication Constant | 100 | |
| Addictive Constant | 0 | |
| Compensator Range | ±15’ | |
| Compensator Accuracy | ±0.3” | |
| Sensitivity of Circular Bubble | 8’/2mm | |
| Sensitivity of Circular Bubble | 1° or 1 gon | |
| Weight | 2.85kg | |
| Dimension | 280*145*185mm | |
| Protection | IP66 | |
| Working Temperature | -20℃~+50℃ |
