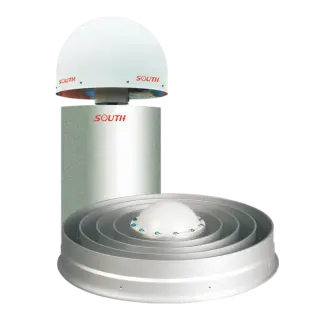

SOUTH CR3 G3
SOUTH CR3 G3 — CORS. Topoqraf AZ LLC is the official SOUTH distributor in Azerbaijan: genuine equipment, official warranty, calibration and technical service. Request a quote for price and delivery time.
- Genuine equipment and official warranty
- Setup, training and technical support
- Calibration and technical service

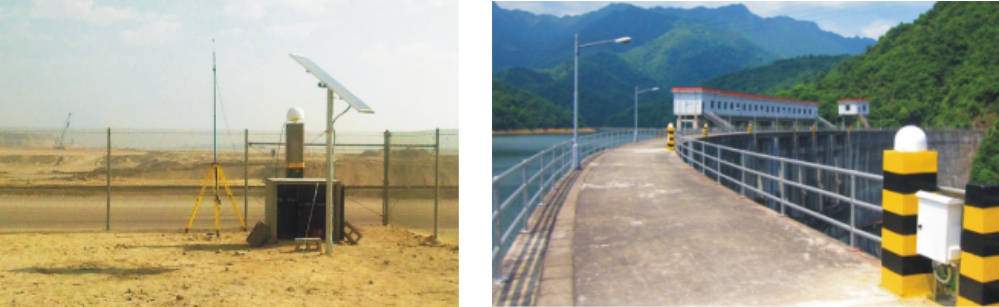

Features
Specifications
| Choke Ring Antenna | Minimum tracking elevation | 0° |
|---|---|---|
| Practical tracking elevation | 5° | |
| Frequency Range | GPS L1/ L2/ L5 QZSS: L1,L2C,L5 GLONASS L1/L2 SBAS: L1 C/A,L5 BDS B1/ B2/ B3 GALILEO E1/ E2/ E5a/ E5b/ E6,Alt BOC | |
| Supported SBAS signal bands | WAAS/ EGNOS/ MSAS/ GAGAN/ GAGAN | |
| Phase-center accuracy | 2mm | |
| Phase-center repeatability | < 1mm | |
| Maximum phase-center eccentricity | 2mm | |
| Antenna gain | 65dB | |
| LNA features | Advanced filtering to reduce interference by high power out-of-band transmitters | |
| LNA gain | 50 ± 2dB | |
| Supply voltage | 3V DC to 18V DC | |
| Supply current (maximum) | 40MA | |
| Delay | 5 x 10^(-9) s | |
| Dimmension | φ322*261mm | |
| Element type | Microstripe antenna | |
| Porlarization | RHCP | |
| Axial ratio | 2dB at Zenith | |
| Voltage standing wave ratio | 2.0 maximum | |
| Left-hand circular polarization | 20dB | |
| Multipath mitigation technologies | LHCP rejection and 1/4 wave choke ring ground plane | |
| Ground plane design | 1/4 wave choke ring | |
| Coaxial connector | TNC female | |
| Shock rating | 1m (3.28 ft) drop | |
| Vibration rating | 4.3 GRMS, random vibration profile; Z axis only | |
| Humidity | 95% | |
| Operating temprature | -50 °C to +85 °C (-58 °F to 185 °F) | |
| Storage temprature | -65 °C to +85 °C (-85 °F to 185 °F) | |
| Mounting thread | 5/8" x 11 Female |
