Official distributor On order Automatic Levels

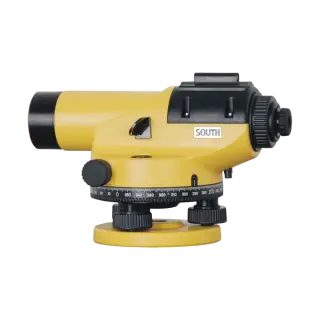

SOUTH NL 20G/ NL 24G/ NL 28G/ NL 32G
SOUTH NL 20G/ NL 24G/ NL 28G/ NL 32G — Automatic Levels. Topoqraf AZ LLC is the official SOUTH distributor in Azerbaijan: genuine equipment, official warranty, calibration and technical service. Request a quote for price and delivery time.
- Genuine equipment and official warranty
- Setup, training and technical support
- Calibration and technical service

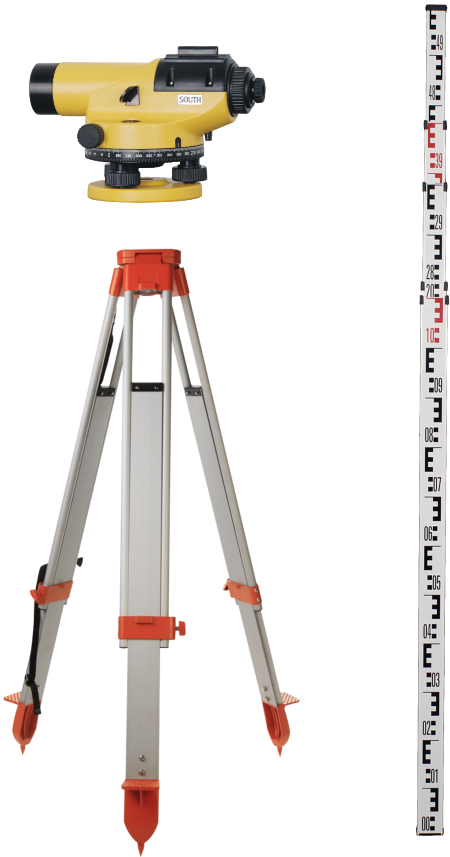

Features
Specifications
| Auto Level | Magnification | NL20G: 20x NL24G: 24x NL28G: 28x NL32G: 32x |
|---|---|---|
| Effective Objective Aperture | NL20G: 34mm NL24G: 36mm NL28G: 36mm NL32G: 38mm | |
| Image | Erect | |
| Reticle | Cross Reticle | |
| Field of View | 1°20′ (2.6m /100m) | |
| Minimum Focus Distance | 0.3m | |
| Multiplication Constant | 100 | |
| Additive Constant | 0 | |
| Compensator Type | Magnetic Damping | |
| Compensator Range | ±15′ | |
| Compensator Setting Time | ＜2s | |
| Compensator Setting Accuracy | ±0.5″ | |
| Standard 1km Deviation | NL20G: 2,5mm NL24G: 2,0mm NL28G: 1,5mm NL32G: 1,0mm | |
| Sensitivity of Bubble | 8′ /2mm | |
| Circle Graduation | 360° or 400 gon (Minimum 1°or 1 gon) | |
| Protection Class | IP54 | |
| Working Temperature | -20℃ ～ +50℃ | |
| Storage Temperature | -40℃ ～ +70℃ | |
| Net Weight per Unit | 1.8kg | |
| Package Size (4 PCS/CTN) | 220×420×590mm | |
| Gross Weight (4 PCS/CTN) | 11kg |
