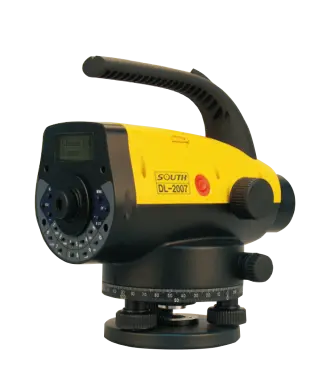

SOUTH DL-2007
SOUTH DL-2007 — Digital Levels. Topoqraf AZ LLC is the official SOUTH distributor in Azerbaijan: genuine equipment, official warranty, calibration and technical service. Request a quote for price and delivery time.
- Genuine equipment and official warranty
- Setup, training and technical support
- Calibration and technical service
Specifications
| Height Accuracy (standard deviation for 1km double run leveling) | Digital Reading | 0.7mm |
|---|---|---|
| Optical Reading | 2.0mm | |
| Distance Accuracy | Digital Reading | D≤10m:10mm; D>10m:D*0.001 |
| Distance Range | Digital Reading | 2m~110m |
| Minimum Display | HD | 1mm/ 0.1mm |
| Distance | 0.1/ 1cm | |
| Measuring Time | within 3s in normal condition | |
| Telescope | Magnification | 32X |
| Resolving Power | 3" | |
| Field of View | 1°30' | |
| Multiple Constant | 100 | |
| Additive Constant | 0 | |
| Compensator | Type | magnetic-damped |
| Range | >±12' | |
| Accuracy | 0.30"/ 1' | |
| Battery | Operating Time | 16 hours |
| Data Storage | Storage | 16MB, 20,000 points |
| Point Name | increasing/ decreasing/ customized | |
| Connection | USB | |
| External Storage | SD Card | |
| Circular vial Accuracy | 8'/ 2mm | |
| Display | 160*64dpi LCD with illumination | |
| Working Temperature | -20°C ~ 50°C | |
| Dimension | 230mm X 150mm X 210mm | |
| Weight | 2.5kg | |
| IP Standard | IP55 |
