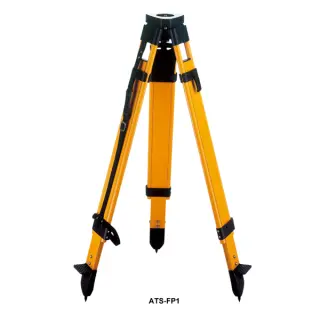

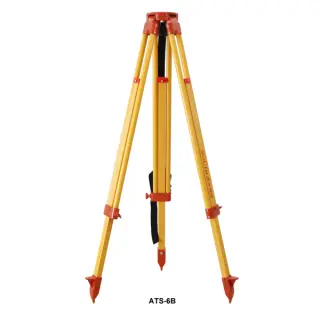

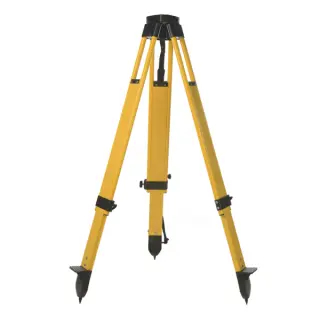

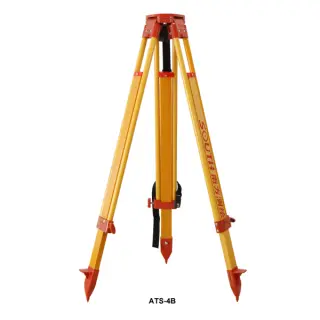

SOUTH ATS-2B /ATS-4B /ATS-6B /ATS-FP1 /ATS-FP2 /ATS-FP3
SOUTH ATS-2B /ATS-4B /ATS-6B /ATS-FP1 /ATS-FP2 /ATS-FP3 — Prisms/Tripods/Poles/Staffs.... Topoqraf AZ LLC is the official SOUTH distributor in Azerbaijan: genuine equipment, official warranty, calibration and technical service. Request a quote for price and delivery time.
- Genuine equipment and official warranty
- Setup, training and technical support
- Calibration and technical service

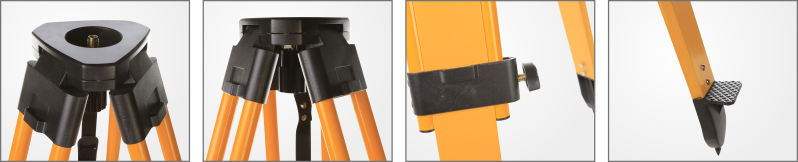

Features
Specifications
| Tripod | Model | ATS-2B /ATS-4B /ATS-6B /ATS-FP1 /ATS-FP2 /ATS-FP3 |
|---|---|---|
| Full Length | ATS-2B: 1800mm ATS-4B: 1630mm ATS-6B: 1550mm ATS-FP1: 1755mm ATS-FP2: 1780mm ATS-FP3: 1755mm | |
| Min. Length | ATS-2B: 1080mm ATS-4B: 970mm ATS-6B: 940mm ATS-FP1: 1090mm ATS-FP2: 1090mm ATS-FP3: 1090mm | |
| Lock | ATS-2B: Twist ATS-4B: Twist ATS-6B: Twist ATS-FP1: Clamp ATS-FP2: Twist ATS-FP3: Twist & Clamp | |
| Head (Outer) | ATS-2B: 158mm ATS-4B: 158mm ATS-6B: 120mm ATS-FP1: 160mm ATS-FP2: 160mm ATS-FP3: 160mm | |
| Head (Inner) | ATS-2B: 66mm ATS-4B: 66mm ATS-6B: 45mm ATS-FP1: 67.5mm ATS-FP2: 67.5mm ATS-FP3: 67.5mm | |
| Weight | ATS-2B: 5.88kg ATS-4B: 4.5kg ATS-6B: 3.5kg ATS-FP1: 8.2kg ATS-FP2: 8.0kg ATS-FP3: 8.5kg |
